long lifetime medium voltage power cable with competitive price
1.Features and applications
high voltage xlpe insulated pvc sheathed power cable of 35kv or lower not only has excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion- resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working as well.
They are suitable for using in rated AC voltage(Uo/U) 6/6-26/35kv system transmitting and distributing lines. According to different sheath make ups, they can be used for laying in the air (cable bridges,indoor wall supponts and groove boxes) and in soil(direct burying,cable canals and pipelines)
The product is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
3.Type Description & Application Occasion of xlpe cable
XLPE insulation PVC sheath power cable
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
XLPE insulation PE sheath power cable
XLPE insulation, steel tape armor, PVC sheath power cable
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
XLPE insulation, steel tape armor, PE sheath power cable
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable
XLPE insulation, thin steel-wire armor, PVC sheath power cable
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
XLPE insulation, thick steel-wire armor, PVC sheath power cable
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.
The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable.
Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability.
4.Rated Voltage,Core Numbers & Nominal Cross-section Area of XLPE cable as following Table 1-1
1, Rated power-frequency voltage Uo/U : 3.6/6kV-26/35kV
2,Max.permissible continuous operating temperature of conductor: 90°C
3,Max.short-circuit temperature of conductor shall not exceed 250 °C .(5s maximum duration ).
4,The ambient temperature under installation should not below 0
5, The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a three-core cable should not less than 15 times of the cable diameter.
6.Structure of medium voltage power cable
7.Detailed picture of medium voltage power cable

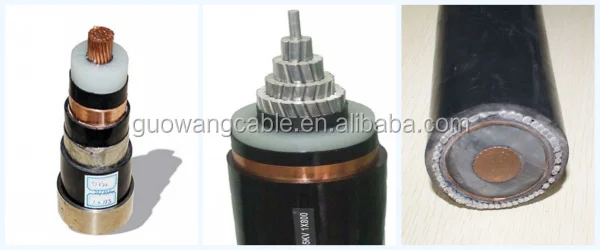

Single Core Medium Voltage Power Cable

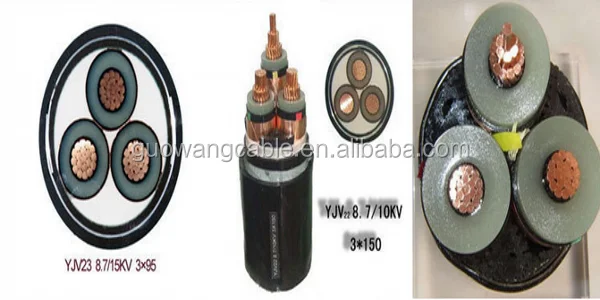

Three Core Medium Voltage Power Cable
