Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Guowang
  • Model Number: Power Cable
  • Insulation Material: PVC/XLPE/PE
  • Type: Low Voltage
  • Application: Construction,Power Station,Underground
  • Conductor Material: Copper,Aluminum
  • Jacket: PVC
  • Voltage: 0.6/1KV,8.7/15KV,26/35KV
  • No.of cores: 1, 2, 3, 3+1, 3+2,4, 4+1,5
  • Standard: IEC60502, BS6346, VDE, AS/NZS
  • Cross-section area: 1.5mm2-630mm2
  • Armor: STA/SWA/AWA
  • Certification: CCC, ISO9001, ISO14001, OHSAS18001
  • Color: As your requirement
  • Armored power cable: Armored power cable
  • XLPE/PVC armored cable: XLPE/PVC armored cable
  • Underground power cable: Underground power cable

Packaging & Delivery

Packaging Details: Wooden drum,steel-wooden drum,steel drum or as your require for aluminum cable
Delivery Detail: Within 15 days after down payment

0.6/1KV 8.7/15KV 26/35KV Price High Voltage Power Cable/High Voltage XLPE Power Cable



Product Description

1  Introduction

XLPE (cross linked polyethylene) insulated middle voltage cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.



2   Product Standard

The middle voltage cable  is manufactured according to the standard of GB/12706-2008 or I IEC60502-2, IEC60228, IEC60332, BS6622, ICEA S-66-524, VDE etc.

Guowang cable can also design and produce cables for special application requirement according to the standard you require.



3  Range of application

The middle voltage cable is suitable for power transmission and distribution lines with rated power frequency voltage 3.6/6kV~ 26/35kV.



4   Instruction of application

4.1 Rated voltages: 3.6/6 kV~26/35 kV

4.2 The ambient temperature for installation: ≥0℃

4.3 Maximum conductor temperature in normal operation:≤90℃

4.4 Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃

4.5 Permissible bending radius:

Single cable: [20(D+d)±5%]mm

Multi-core cable:[15(D+d)±5%]mm



5   Type,designation and application

Type

Designation

Application

Cu

Al

CU/XLPE/PVC

AL/XLPE/PVC

Cu core(Al core)XLPE insulated PVC sheathed power cable

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.

CU/XLPE/PE

AL/XLPE/PE

Cu core(Al core)XLPE insulated PE sheathed power cable

CU/XLPE/DSTA/PVC

AL/XLPE/DSTA/PVC

Cu core(Al core)XLPE insulated double of steel-tape armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

CU/XLPE/DSTA/PE

AL/XLPE/DSTA/PE

Cu core(Al core)XLPE insulated double of steel-tape armored PE sheathed power cable

 CU/XLPE/SWA/PVC

AL/XLPE/SWA/PVC

Cu core(Al core)XLPE insulated steel-wire armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force

CU/XLPE/SWA/PE

AL/XLPE/SWA/PE

Cu core(Al core)XLPE insulated steel-wire armored PE sheathed power cable



Note:

1. The armoring materials of single core cable should use nonmagnetic materials.

2. Guowang cable can produce flame-resistance, fire-resistance,termite-proof, low smoke free halogen, low flame low halogen etc. power cable as customer required.



6.Structure of xlpe medium voltage power cable



MEDIUM VOLTAGE SINGLE CORE XLPE INSULATED POWER CABLE





MEDIUM VOLTAGE THREE CORE XLPE INSULATED POWEDR CABLE

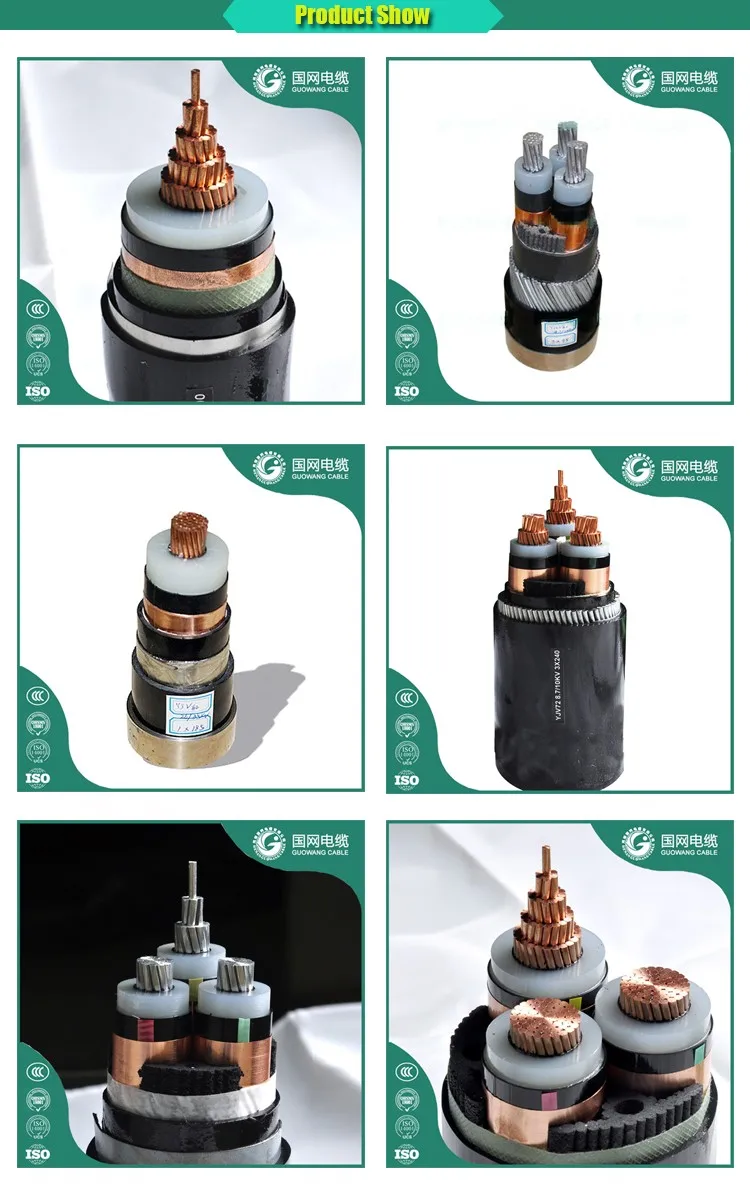

Detailed Pictures



0.6/1KV 8.7/15KV 26/35KV Price High Voltage Power Cable/High Voltage XLPE Power Cable




Our other main products:
Packaging & Shipping

long lifetime medium voltage electric cable 50mm2 with competitive price





Company Information



Our test machine

Our certification

FAQ

 1.Q:Are you a factory or trading company?

A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority.
We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained OHSAS, CCC,ISO certification.
